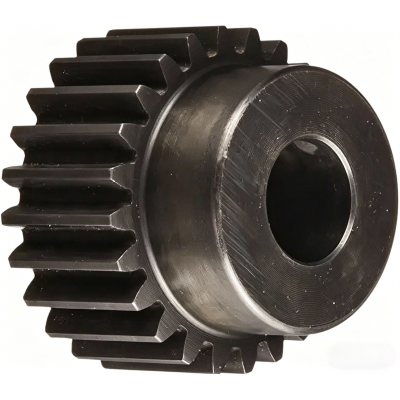

FBHCTCF
Price $ 78.19
| Part Number | FBHCTCF |
| System of Measurement | Inch |
| Gear Type | Spur |
| Pressure Angle | 20° |
| Component | Gear |
| Bore Type | Round |
| Gear Pitch | 16 |
| Number Of Teeth | 80 |
| Gear Pitch Diameter | 5" |
| OD | 5.13" |
| Face Width | 3/4" |
| Overall Width | 1.5" |
| For Shaft Diameter | 3/4" |
| Material | 1020 Carbon Steel |
| Teeth Heat Treatment | Not Hardened |
| Hub Diameter | 3.88" |
| Hub Width | 0.75" |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | Not Compliant |
INTERCHANGE
The LILY Bearing part series FBHCTCF is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
FBHCTCF
