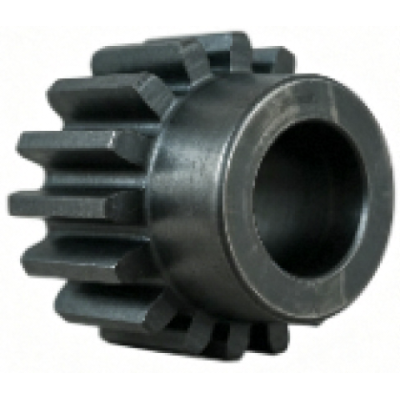

FBHCTEB
Price $ 35.00
| Part Number | FBHCTEB |
| System of Measurement | Inch |
| Gear Type | Spur |
| Pressure Angle | 20° |
| Component | Gear |
| Bore Type | Round |
| Gear Pitch | 8 |
| Number Of Teeth | 12 |
| Gear Pitch Diameter | 1 1/2" |
| OD | 1.75" |
| Face Width | 1 1/2" |
| Overall Width | 2.25" |
| For Shaft Diameter | 3/4" |
| Material | 1020 Carbon Steel |
| Teeth Heat Treatment | Not Hardened |
| Hub Diameter | 1.12" |
| Hub Width | 0.75" |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | Not Compliant |
INTERCHANGE
The LILY Bearing part series FBHCTEB is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
FBHCTEB
