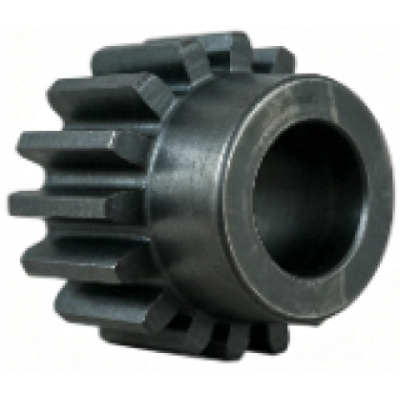

FBHCTFG
Price $ 15.13
| Part Number | FBHCTFG |
| System of Measurement | Inch |
| Gear Type | Spur |
| Pressure Angle | 20° |
| Component | Gear |
| Bore Type | Round |
| Gear Pitch | 20 |
| Number Of Teeth | 12 |
| Gear Pitch Diameter | 0.6" |
| OD | 0.7" |
| Face Width | 1/2" |
| Overall Width | 0.94" |
| For Shaft Diameter | 5/16" |
| Material | 1117 Carbon Steel |
| Teeth Heat Treatment | Not Hardened |
| Hub Diameter | 0.46" |
| Hub Width | 0.44" |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | Not Compliant |
INTERCHANGE
The LILY Bearing part series FBHCTFG is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
FBHCTFG
