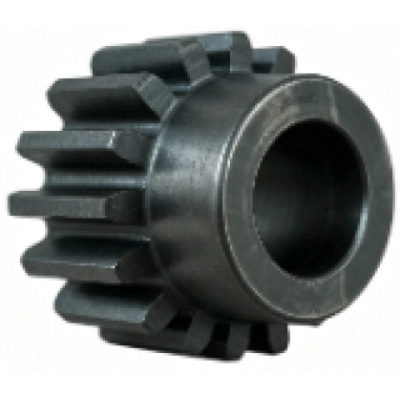

FBHCTGF
Price $ 25.42
| Part Number | FBHCTGF |
| System of Measurement | Inch |
| Gear Type | Spur |
| Pressure Angle | 20° |
| Component | Gear |
| Bore Type | Round |
| Gear Pitch | 12 |
| Number Of Teeth | 12 |
| Gear Pitch Diameter | 1" |
| OD | 1.17" |
| Face Width | 1" |
| Overall Width | 1.625" |
| For Shaft Diameter | 1/2" |
| Material | 1144 Carbon Steel |
| Teeth Heat Treatment | Hardened |
| Hub Diameter | 0.75" |
| Hub Width | 0.625" |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
INTERCHANGE
The LILY Bearing part series FBHCTGF is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
FBHCTGF
