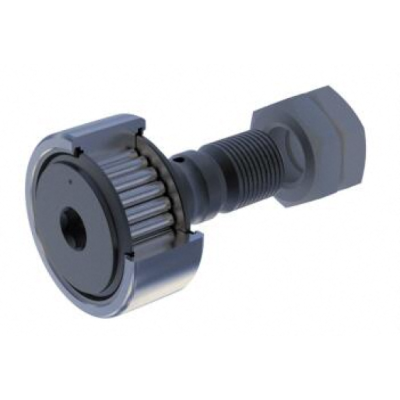

GC 16 SW
| Part Number | GC 16 SW |
| System of Measurement | Metric |
| Ø-outer D (mm) | 16 |
| d1 (mm) | 6 |
| L (mm) | 28 |
| B1 (mm) | 12.2 |
| B2 (mm) | 16 |
| Threading G (mm) | M6x1 |
| G1 (mm) | 8 |
| C (mm) | 11 |
| C1 (mm) | 0.6 |
| dA (mm) | 10.4 |
| B3 (mm) | |
| r (mm) | 0.3 |
| Rp (mm) | 500 |
| W (mm) | 4 |
| P (mm) | 6.4 |
| Load coefficient Cw (N) | 4900 |
| Dyn Fr (N) | 1200 |
| Stat For (N) | 2300 |
| Speed limit with grease (min-1) | 5000 |
| Weight (kg) | 0.024 |
| Clamping torque (Nm) | 3 |
