GDCFKGH
Price $ 48.05
| Part Number | GDCFKGH |
| System of Measurement | Inch |

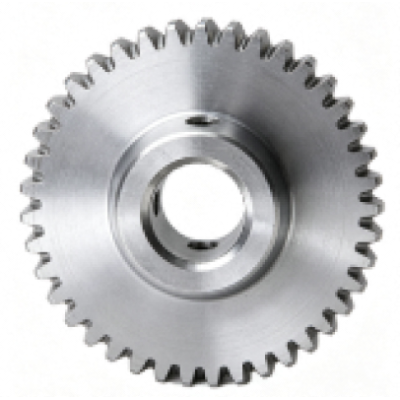

| Gear Type | Spur |
| Pressure Angle | 14 1/2° |
| Component | Gear |
| Bore Type | Round/Machinable |
| Gear Pitch | 24 |
| Number Of Teeth | 72 |
| Gear Pitch Diameter | 3" |
| OD | 3.08" |
| Face Width | 1/4" |
| Overall Width | 0.75" |
| For Shaft Diameter | 1/2"-13/16" |
| Material | 1144 Carbon Steel |
| Teeth Heat Treatment | Not Hardened |
| Hub Diameter | 1.375" |
| Hub Width | 0.5" |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
INTERCHANGE
The LILY Bearing part series GDCFKGH is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GDCFKGH
