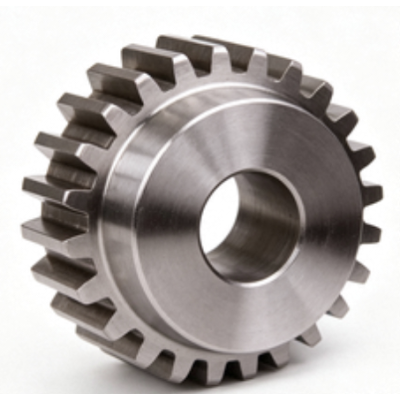

GDCFKJH
Price $ 23.57
| Part Number | GDCFKJH |
| System of Measurement | Inch |
| Gear Type | Spur |
| Pressure Angle | 14 1/2° |
| Component | Gear |
| Bore Type | Round |
| Gear Pitch | 32 |
| Number Of Teeth | 40 |
| Gear Pitch Diameter | 1 1/4" |
| OD | 1.31" |
| Face Width | 3/16" |
| Overall Width | 0.563" |
| For Shaft Diameter | 3/8" |
| Material | 1144 Carbon Steel |
| Teeth Heat Treatment | Not Hardened |
| Hub Diameter | 0.875" |
| Hub Width | 0.375" |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
INTERCHANGE
The LILY Bearing part series GDCFKJH is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GDCFKJH
