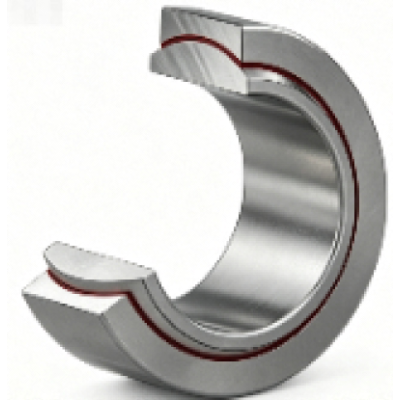

GE 6 C
| Part Number | GE 6 C |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Seal Type | Open |
| Bore Dia | 6 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 14 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Nominal Width | 6 mm |
| Nominal Width Tolerance | -0.12mm to 0 |
| Width Outer Ring | 4 mm |
| Width Outer Ring Tolerance | -0.24mm to 0 |
| Angle Of Tilt | 13° |
| Raceway Diameter Inner Ring | 10 mm |
| Chamfer Dimension Bore | min.0.3 mm |
| Chamfer Dimension Outer Ring | min.0.3 mm |
| Dynamic Radial Load | 810 lbf |
| Static Radial Load | 2025 lbf |
| Ring Material | Steel |
| Ball Material | Ptfe Sintered Bronze |
| Specific Dynamic Load Factor | 100 N/mm² |
| Specific Static Load Factor | 250 N/mm² |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -50° to 120° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.004 kg |
Design Features of GE 6 C Bearing
GE 6 C Bearing consists of three main components: an inner ring, an outer ring, and a sliding surface, which is the interface between the inner and outer rings. GE 6 C bore dia is 6 mm. Its out dia is 14 mm. GE 6 C nominal width is 6 mm.The spherical plain bearing is designed to handle misalignment and heavy loads in various mechanical applications.
What Benefits Can GE 6 C Bearing Provide?
- Self-Aligning Capability: The design allows to adjust to angle changes between the shaft and housing, making it easy to handle shaft deflections.
- High Load Capacity: It supports heavy radial loads and moderate axial loads in both directions.
- Durability: It is made from high-quality materials, offering better wear resistance.
- Versatility: Suitable for a wide range of applications requiring oscillatory motion.
What Can GE 6 C Bearing Be Used for?
- Heavy Machinery: Ideal for construction equipment, and mining equipment.
- Hydraulic Cylinders: It is used to handle misalignment and back-and-forth movements.
- Automotive: Common found in suspension systems and steering mechanisms.
- Industrial Equipment: It can be used in various industrial machinery for its self-aligning and high-load capacity features.
