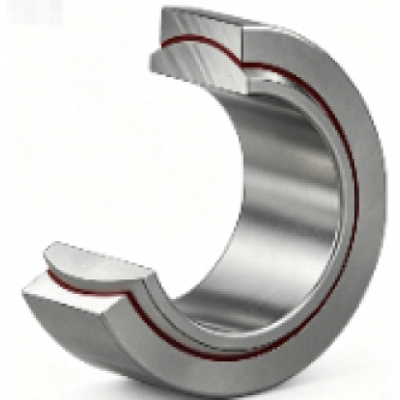

GEZ 204 ESX-2LS
| Part Number | GEZ 204 ESX-2LS |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Inch |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Inner Ring Shape | Groove |
| Outer Ring Shape | Groove |
| Seal Type | Triple-Lip Seals |
| Bore Dia | 2.25" |
| Bore Dia Tolerance | -0.001" to 0" |
| Outer Dia | 3.5625" |
| Outer Dia Tolerance | -0.001" to 0" |
| Nominal Width | 1.969" |
| Nominal Width Tolerance | -0.005" to 0" |
| Width Outer Ring | 1.687" |
| Width Outer Ring Tolerance | -0.005" to 0" |
| Angle Of Tilt | 6° |
| Raceway Diameter Inner Ring | 3.235" |
| Width Annular Lubrication Groove At Outer Ring | 0.2205" |
| Width Annular Lubrication Groove At Inner Ring | 0.1969" |
| Diameter Lubrication Hole | 0.1575" |
| Chamfer Dimension Bore | 0.0236" |
| Chamfer Dimension Outer Ring | 0.0394" |
| Dynamic Radial Load | 95625 lbf |
| Static Radial Load | 191250 lbf |
| Ring Material | Steel |
| Ball Material | Steel |
| Specific Dynamic Load Factor | 21755.661 psi |
| Specific Static Load Factor | 43511.321 psi |
| Lubrication | No Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -20° to 80° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 2.866 lb |
Design Features of GEZ 204 ESX-2LS Bearing
GEZ 204 ESX-2LS Bearing consists of three main components: an inner ring, an outer ring, and a sliding surface, which is the interface between the inner and outer rings. GEZ 204 ESX-2LS bore dia is 2.25". Its out dia is 3.5625". GEZ 204 ESX-2LS nominal width is 1.969".The spherical plain bearing is designed to handle misalignment and heavy loads in various mechanical applications.
What Benefits Can GEZ 204 ESX-2LS Bearing Provide?
- Self-Aligning Capability: The design allows to adjust to angle changes between the shaft and housing, making it easy to handle shaft deflections.
- High Load Capacity: It supports heavy radial loads and moderate axial loads in both directions.
- Durability: It is made from high-quality materials, offering better wear resistance.
- Versatility: Suitable for a wide range of applications requiring oscillatory motion.
What Can GEZ 204 ESX-2LS Bearing Be Used for?
- Heavy Machinery: Ideal for construction equipment, and mining equipment.
- Hydraulic Cylinders: It is used to handle misalignment and back-and-forth movements.
- Automotive: Common found in suspension systems and steering mechanisms.
- Industrial Equipment: It can be used in various industrial machinery for its self-aligning and high-load capacity features.
