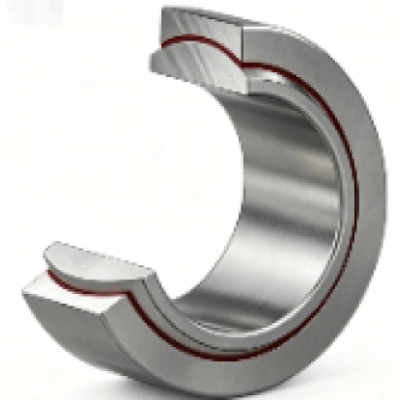

GEZ 312 ES-2RS
| Part Number | GEZ 312 ES-2RS |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Inch |
| Bearing Type | Plain Bearing |
| Plain Bearing Type | Radial |
| For Load Direction | Combined Radial and Thrust |
| Inner Ring Shape | Groove |
| Outer Ring Shape | Groove |
| Seal Type | Double-Lip Seals |
| Bore Dia | 3.75" |
| Bore Dia Tolerance | -0.001" to 0" |
| Outer Dia | 5.875" |
| Outer Dia Tolerance | -0.001" to 0" |
| Nominal Width | 3.281" |
| Nominal Width Tolerance | -0.005" to 0" |
| Width Outer Ring | 2.812" |
| Width Outer Ring Tolerance | -0.005" to 0" |
| Angle Of Tilt | 6° |
| Raceway Diameter Inner Ring | 5.39" |
| Width Annular Lubrication Groove At Outer Ring | 0.3937" |
| Width Annular Lubrication Groove At Inner Ring | 0.315" |
| Diameter Lubrication Hole | 0.2559" |
| Chamfer Dimension Bore | 0.0236" |
| Chamfer Dimension Outer Ring | 0.0394" |
| Dynamic Radial Load | 175500 lbf |
| Static Radial Load | 531000 lbf |
| Ring Material | Steel |
| Ball Material | Steel |
| Specific Dynamic Load Factor | 14503.774 psi |
| Specific Static Load Factor | 43511.321 psi |
| Lubrication | Required |
| Radial Clearance | Standard (Available in C2/C0/C3) |
| Temperature Range | -20° to 80° C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 12.787 lb |
Design Features of GEZ 312 ES-2RS Bearing
GEZ 312 ES-2RS Bearing consists of three main components: an inner ring, an outer ring, and a sliding surface, which is the interface between the inner and outer rings. GEZ 312 ES-2RS bore dia is 3.75". Its out dia is 5.875". GEZ 312 ES-2RS nominal width is 3.281".The spherical plain bearing is designed to handle misalignment and heavy loads in various mechanical applications.
What Benefits Can GEZ 312 ES-2RS Bearing Provide?
- Self-Aligning Capability: The design allows to adjust to angle changes between the shaft and housing, making it easy to handle shaft deflections.
- High Load Capacity: It supports heavy radial loads and moderate axial loads in both directions.
- Durability: It is made from high-quality materials, offering better wear resistance.
- Versatility: Suitable for a wide range of applications requiring oscillatory motion.
What Can GEZ 312 ES-2RS Bearing Be Used for?
- Heavy Machinery: Ideal for construction equipment, and mining equipment.
- Hydraulic Cylinders: It is used to handle misalignment and back-and-forth movements.
- Automotive: Common found in suspension systems and steering mechanisms.
- Industrial Equipment: It can be used in various industrial machinery for its self-aligning and high-load capacity features.
