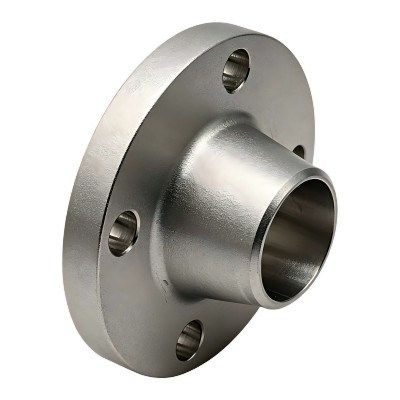

GIAGKEFB
Price $ 41.79
| Part Number | GIAGKEFB |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Flange, Adapter |
| Pressure Class | 600 |
| Fabrication | Forged |
| Flanged Connection Surface | Raised |
| Dash Size | 32 |
| Flange OD | 6 1/2" |
| For Bolt Diameter | 3/4" |
| Bolt Hole Diameter | 3/4" |
| Bolt Hole Number of | 8 |
| Bolt Circle Diameter | 5" |
| Maximum Pressure | 1,400 psi @ 72° F |
| Maximum Steam Pressure | 1,300 psi @ 300° F |
| For Fitting Class | 3000 |
| For Fitting Schedule | 80 |
| For Fitting Material | Steel |
| Connection Type | Pipe |
| Connection Style | Butt Weld × Flanged |
| Pipe Size | 2 |
| Wall Thickness | 0.218" |
| Construction | Seamless |
| Material | Steel |
| For Pipe Schedule | 80 |
| For Pipe Material | Steel |
| Specifications Met | ASME B16.5, ASTM A105 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| For Use With | Air, Hydraulic Fluid, Natural Gas, Oil, Steam, Water |
INTERCHANGE
The LILY Bearing part series GIAGKEFB is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GIAGKEFB
