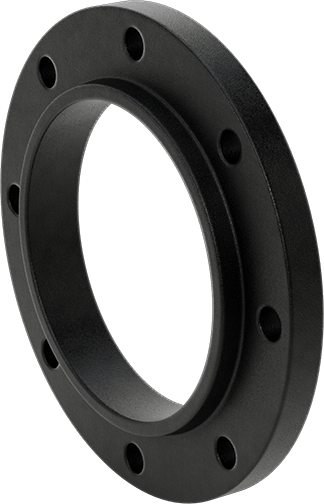

GIAJFKDJC
Price $ 22.46
| Part Number | GIAJFKDJC |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Flange, Adapter |
| Pressure Class | 150 |
| Connection Type | Pipe |
| Connection Style | Stub End × Flanged |
| Flanged Connection Surface | Flat |
| Gender | Female |
| Pipe Size | 3 |
| Flange OD | 7 1/2" |
| For Bolt Diameter | 5/8" |
| Bolt Hole Diameter | 3/4" |
| Bolt Hole Number of | 4 |
| Bolt Circle Diameter | 6" |
| Maximum Pressure | 285 psi @ 72° F |
| Maximum Steam Pressure | 150 psi @ 300° F |
| Material | Steel |
| Related Product | Straight Adapters |
| For Fitting Schedule | 40 |
| For Fitting Material | Iron, Steel |
| For Pipe Schedule | 40 |
| For Pipe Material | Steel |
| Specifications Met | ASME B16.5, ASTM A105, MSS SP-25 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
INTERCHANGE
The LILY Bearing part series GIAJFKDJC is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GIAJFKDJC
