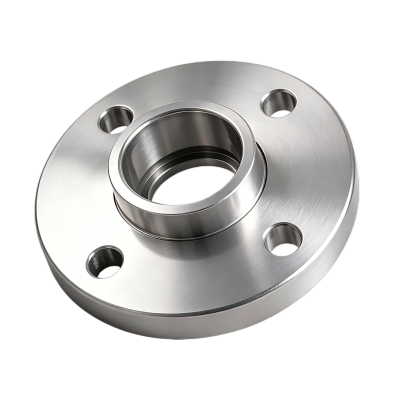

GIAJFKFI
Price $ 188.53
| Part Number | GIAJFKFI |
| System of Measurement | Inch |
| Shape | Straight |
| Type | Flange, Adapter |
| Pressure Class | 150 |
| Connection Type | Pipe |
| Connection Style | Butt Weld × Flanged |
| Flanged Connection Surface | Raised |
| Pipe Size | 12 |
| Wall Thickness | 0.406" |
| Flange OD | 19" |
| For Bolt Diameter | 7/8" |
| Bolt Hole Diameter | 1" |
| Bolt Hole Number of | 12 |
| Bolt Circle Diameter | 17" |
| Construction | Seamless |
| Maximum Pressure | 285 psi @ 72° F |
| Maximum Steam Pressure | 150 psi @ 300° F |
| Material | Steel |
| For Fitting Schedule | 40 |
| For Fitting Material | Iron, Steel |
| For Pipe Schedule | 40 |
| For Pipe Material | Steel |
| Specifications Met | ASME B16.5, ASTM A105, MSS SP-25 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
| For Use With | Air, Natural Gas, Oil, Steam, Water |
INTERCHANGE
The LILY Bearing part series GIAJFKFI is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GIAJFKFI
