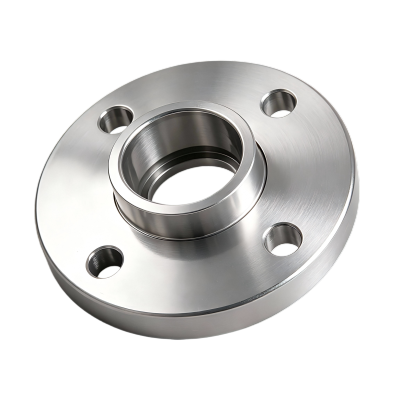

GIAJFKGE
Price $ 71.17
Part Number | GIAJFKGE |
System of Measurement | Inch |
Shape | Straight |
Type | Flange, Reducing Adapter |
Pressure Class | 150 |
Connection Type | Pipe |
Connection Style | Slip-On Weld × Flanged |
Flanged Connection Surface | Raised |
Gender | Female |
Pipe Size | 3 |
For Flange Pipe Size | 4 |
Flange OD | 9" |
For Bolt Diameter | 5/8" |
Bolt Hole Diameter | 3/4" |
Bolt Hole Number of | 8 |
Bolt Circle Diameter | 7 1/2" |
Maximum Pressure | 285 psi @ 72° F |
Maximum Steam Pressure | 230 psi @ 300° F |
Material | Steel |
For Fitting Schedule | 40 |
For Fitting Material | Steel |
For Pipe Schedule | 40 |
For Pipe Material | Steel |
Specifications Met | ASME B16.5, ASTM A105 |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
For Use With | Air, Natural Gas, Oil, Steam, Water |
INTERCHANGE
The LILY Bearing part series GIAJFKGE is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GIAJFKGE
