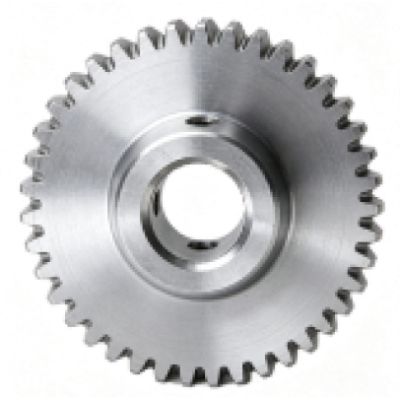

GIDCKFE
Price $ 15.97
| Part Number | GIDCKFE |
| System of Measurement | Inch |
| Gear Type | Spur |
| Pressure Angle | 20° |
| Component | Gear |
| Bore Type | Round |
| Gear Pitch | 32 |
| Number Of Teeth | 32 |
| Gear Pitch Diameter | 1" |
| OD | 1.06" |
| Face Width | 3/16" |
| Overall Width | 0.437" |
| For Shaft Diameter | 1/4" |
| Material | 303 Stainless Steel |
| Teeth Heat Treatment | Not Hardened |
| Hub Diameter | 0.5" |
| Hub Width | 0.25" |
| Set Screw Thread Size | 6-32 |
| Includes | Set Screw |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
INTERCHANGE
The LILY Bearing part series GIDCKFE is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GIDCKFE
