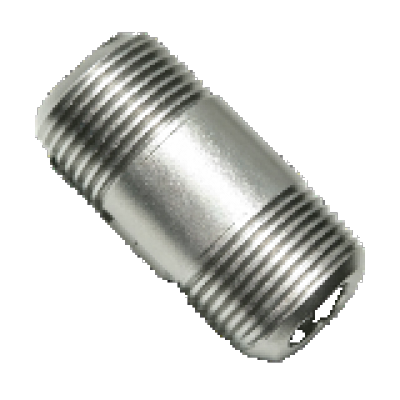

GIFATIE
Price $ 16.98
Part Number | GIFATIE |
System of Measurement | Inch |
Shape | Straight |
Type | Pipe |
Schedule | XXH |
Threading | Fully Threaded |
Connection Type | Pipe |
Connection Style | Threaded |
Gender | Male |
Pipe Size | 1 1/4 |
Dash Size | 20 |
Length | 1 5/8" |
OD | 1 21/32" |
ID | 0.896" |
Wall Thickness | 0.382" |
Thread Type | NPT |
Construction | Seamless |
Material | Steel |
For Fitting Class | 6000 |
For Fitting Material | Steel |
For Flange Class | 1500 |
For Flange Material | Steel |
Specifications Met | ASME B1.20.1, ASTM A106, ASTM A733 |
Weight | 0.58 lbs. |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
For Use With | Air, Hydraulic Fluid, Nitrogen Gas, Oil, Steam, Water |
INTERCHANGE
The LILY Bearing part series GIFATIE is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GIFATIE
