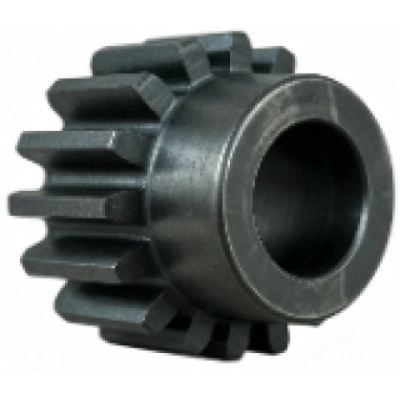

GIGHKFFD
Price $ 29.73
Part Number | GIGHKFFD |
System of Measurement | Inch |
Gear Type | Spur |
Pressure Angle | 14 1/2° |
Component | Gear |
Bore Type | Round |
Gear Pitch | 32 |
Number Of Teeth | 20 |
Gear Pitch Diameter | 5/8" |
OD | 0.69" |
Face Width | 3/16" |
Overall Width | 0.5" |
For Shaft Diameter | 1/4" |
Material | 1117 Carbon Steel |
Teeth Heat Treatment | Not Hardened |
Hub Diameter | 0.52" |
Hub Width | 0.31" |
Set Screw Thread Size | 10-32 |
Includes | Set Screw |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | Not Compliant |
INTERCHANGE
The LILY Bearing part series GIGHKFFD is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GIGHKFFD
