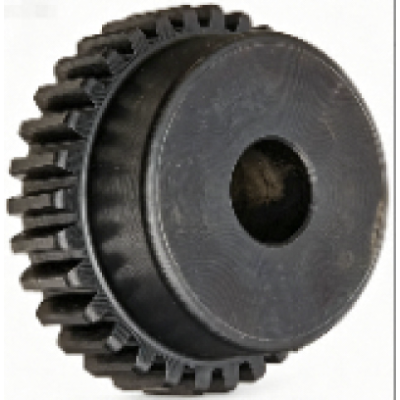

GIGHKGI
Price $ 97.65
| Part Number | GIGHKGI |
| System of Measurement | Inch |
| Gear Type | Spur |
| Pressure Angle | 14 1/2° |
| Component | Gear |
| Bore Type | Keyed |
| Gear Pitch | 12 |
| Number Of Teeth | 60 |
| Gear Pitch Diameter | 5" |
| OD | 5.17" |
| Face Width | 3/4" |
| Overall Width | 1.5" |
| For Shaft Diameter | 3/4" |
| Material | 1144 Carbon Steel |
| Teeth Heat Treatment | Not Hardened |
| Hub Diameter | 2.75" |
| Hub Width | 0.75" |
| Keyway Width | 0.188" |
| Keyway Depth | 0.094" |
| Set Screw Thread Size | 1/4"-20 |
| Includes | Set Screw |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
INTERCHANGE
The LILY Bearing part series GIGHKGI is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GIGHKGI
