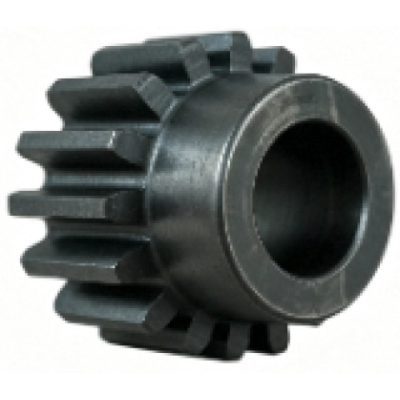

GIGHKIH
Price $ 68.31
| Part Number | GIGHKIH |
| System of Measurement | Inch |
| Gear Type | Spur |
| Pressure Angle | 14 1/2° |
| Component | Gear |
| Bore Type | Keyed |
| Gear Pitch | 8 |
| Number Of Teeth | 16 |
| Gear Pitch Diameter | 2" |
| OD | 2.25" |
| Face Width | 1 1/4" |
| Overall Width | 2" |
| For Shaft Diameter | 7/8" |
| Material | 1144 Carbon Steel |
| Teeth Heat Treatment | Not Hardened |
| Hub Diameter | 1.625" |
| Hub Width | 0.75" |
| Keyway Width | 0.188" |
| Keyway Depth | 0.094" |
| Set Screw Thread Size | 1/4"-20 |
| Includes | Set Screw |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/10/2022, 224 SVHC) Compliant |
INTERCHANGE
The LILY Bearing part series GIGHKIH is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
GIGHKIH
