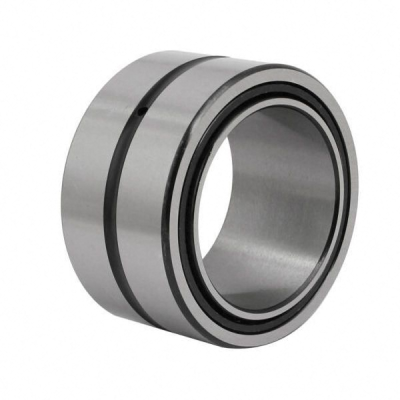

GR 20/MI 16
Part Number | GR 20/MI 16 |
System of Measurement | Inch |
Internal Construction | Roller Bearing Type |
For Load Direction | Radial |
Construction | Single Row |
Seal Type | Open |
Inner Ring | With Inner Ring |
Series | With Inner Ring |
Bore Dia | 1" |
Outer Dia | 1.75" |
Inner Ring Width | 1.26" |
Outer Ring Width | 1.25" |
Lubrication Hole Diameter | 0.09" |
Material | 52100 Bearing Steel |
Cage Material | No retainer |
Full Complement/Caged | Full Complement |
Platform | Guiderol Bearing |
Separable | Inner ring - both sides |
Speed [Max] Oil (RPM) | 4,800 rpm |
Dynamic Radial Load | 8300 lb |
Static Radial Load | 23100 lb |
Max Speed | 2400 rpm |
Operating Temperature Range (F) | -20F to 250 °F |
UPC | 726166081577 |
RoHS | Compliant |
REACH | Compliant |
Weight | 0.47 LB |
