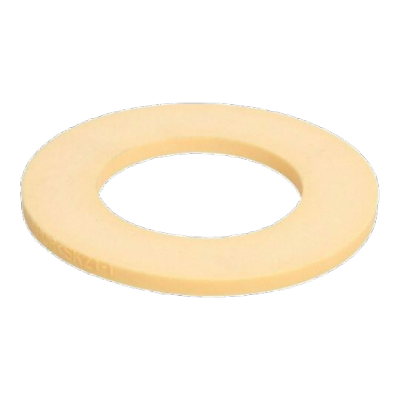

HFDCKFJ
Part Number | HFDCKFJ |
System of Measurement | Inch |
Bearing Type | Plain |
Plain Bearing Type | Thrust |
For Load Direction | Thrust |
For Shaft Diameter | 3/4" |
Bore Dia | 0.755" |
Bore Dia Tolerance | 0" to 0.005" |
Outer Dia | 1 1/4" |
Outer Dia Tolerance | -0.003" to 0" |
Thickness | 1/16" |
Thickness Tolerance | -0.003" to 0.003" |
Dynamic Thrust Load | 400 lbf |
Material | Rulon LR Plastic |
Lubrication | Not Required |
For Shaft Type | Round |
Temperature Range | -400° to 550° F |
RoHS | Compliant |
REACH | Compliant |
INTERCHANGE
The LILY Bearing part series HFDCKFJ is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
HFDCKFJ
