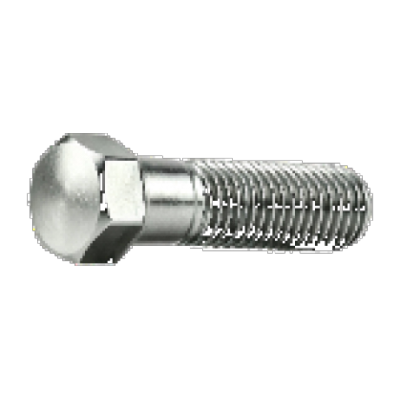

JABCBAFDH
Price $ 1.01
| Part Number | JABCBAFDH |
| System of Measurement | Inch |
| Thread Size | 1/4"-20 |
| Length | 1/2" |
| Threading | Fully Threaded |
| Head Width | 7/16" |
| Head Height | 5/32" |
| Hole Diameter | 0.063" |
| Thread Direction | Right Hand |
| Screw Size Decimal Equivalent | 0.25" |
| Thread Type | UNC |
| Thread Fit | Class 2A |
| Thread Spacing | Coarse |
| Head Type | Hex |
| Locking Type | Wire |
| Drive Style | External Hex |
| Material | 18-8 Stainless Steel |
| Hardness | Rockwell B70 |
| Tensile Strength | 70,000 psi |
| Specifications Met | ASME B18.2.1 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | Not Compliant |
| Internal Code | 0009 |
INTERCHANGE
The LILY Bearing part series JABCBAFDH is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JABCBAFDH
