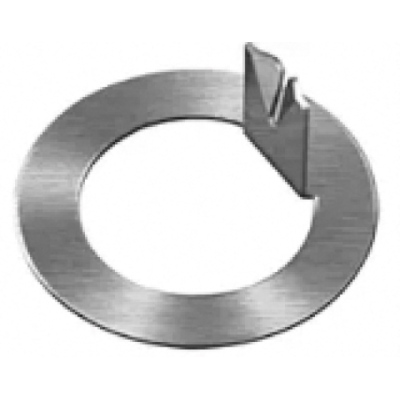

JAEAHABBB
Price $ 1.57
| Part Number | JAEAHABBB |
| System of Measurement | Metric |
| Material | Steel |
| For Screw Size | M8 |
| ID | 8.000 mm |
| OD | 20.000 mm |
| Thickness | 0.800 mm |
| Tab Width | 3.000 mm |
| Tab Depth | 2.000 mm |
| Overall Height | 2.500 mm |
| Washer Type | Spring Lock |
| Spring Lock Washer Shape | Conical |
| Hardness | Not Rated |
| Specifications Met | DIN 462 |
| For Bearing Nut Face Style | Stepped |
| For Bearing Nut Specifications Met | DIN 1804 |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | China |
INTERCHANGE
The LILY Bearing part series JAEAHABBB is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JAEAHABBB
