JAEFDABBD
Per Pack Price $ 3.93
Per Pack of 25
| Part Number | JAEFDABBD |
| System of Measurement | Metric |
| Material | Zinc-Plated Steel |
| Thread Size | M5 |
| Thread Pitch | 0.8 mm |
| Thread Type | Metric |
| Thread Spacing | Coarse |
| Thread Fit | Class 6H |
| Thread Direction | Right Hand |
| Width | 8 mm |
| Height | 5 mm |
| Insert Maximum Temperature | 245° F |
| Specifications Met | ISO 10511 |
| Drive Style | External Hex |

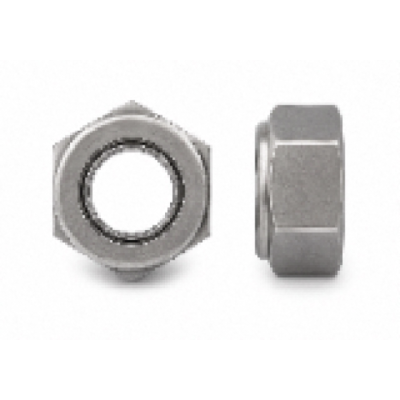

| Nut Type | Locknut, Hex |
| Hex Nut Profile | Thin |
| Locking Type | Nylon Insert |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
| Country of Origin | China |
INTERCHANGE
The LILY Bearing part series JAEFDABBD is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JAEFDABBD
