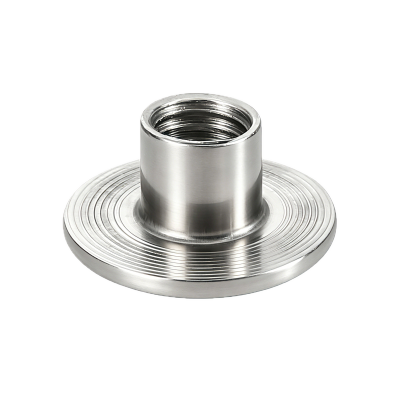

JAFGDAGGA
Per Pack Price $ 10.50
Per Pack of 50
| Part Number | JAFGDAGGA |
| System of Measurement | Metric |
| Material | Steel |
| Thread Size | M8 |
| Thread Type | Metric |
| Thread Pitch | 1.25 mm |
| Thread Spacing | Coarse |
| Thread Fit | Class 6H |
| Thread Direction | Right Hand |
| Base Diameter | 22.2 mm |
| Base Thickness | 1.4 mm |
| Barrel Diameter | 9.4 mm |
| Barrel Height | 15.9 mm |
| Barrel Profile | Standard |
| Nut Type | Weld, Flange |
| Weld Nut Shape | Round |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
| Country of Origin | China |
INTERCHANGE
The LILY Bearing part series JAFGDAGGA is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JAFGDAGGA
