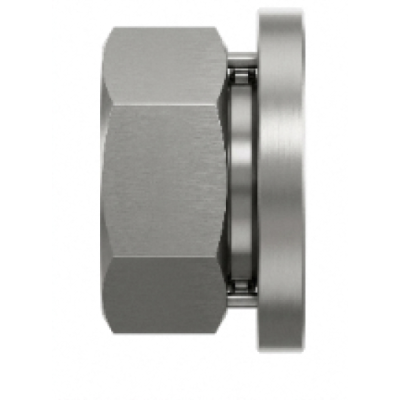

JBADAAACJ
Price $ 1.25
| Part Number | JBADAAACJ |
| System of Measurement | Inch |
| Material | Black-Oxide Steel |
| Thread Size | 5/16"-18 |
| Thread Type | UNC |
| Thread Spacing | Coarse |
| Thread Fit | Class 2B |
| Thread Direction | Right Hand |
| Width | 9/16" |
| Height | 3/8" |
| Flange Diameter | 3/4" |
| Flange Thickness | 0.13" |
| Drive Style | External Hex |
| Nut Type | Flange, Hex |
| Hex Nut Profile | Standard |
| RoHS | RoHS 3 (2015/863/EU) compliant with exemption 6(a)-I - Lead as an alloying element in steel |
| REACH | Not Compliant |
| Country of Origin | China |
INTERCHANGE
The LILY Bearing part series JBADAAACJ is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JBADAAACJ
