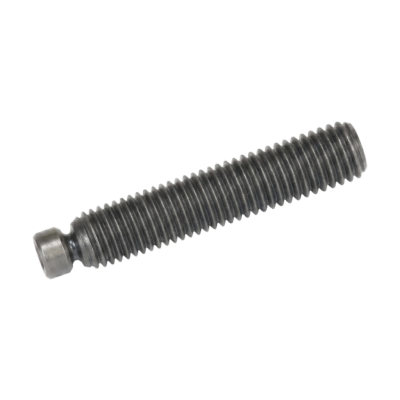

JBGIIACDE
Price $ 8.22
| Part Number | JBGIIACDE |
| System of Measurement | Inch |
| Thread Size | 3/8"-16 |
| Length | 3/4" |
| Maximum Swivel Angle | 9° |
| Drive Size | 3/16" |
| Screw Size Decimal Equivalent | 0.375" |
| Tip Diameter | 0.192" |
| Material | 18-8 Stainless Steel |
| Tip Material | 304 Stainless Steel |
| Hardness | Rockwell C54 |
| Thread Type | UNC |
| Thread Spacing | Coarse |
| Thread Fit | Class 2A |
| Thread Direction | Right Hand |
| Drive Style | Hex |
| Tip Type | Swivel |
| Swivel Tip Type | Permanent |
| Head Type | Headless |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (07/08/2021, 219 SVHC) Compliant |
| Internal Code | 0028 |
INTERCHANGE
The LILY Bearing part series JBGIIACDE is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JBGIIACDE
