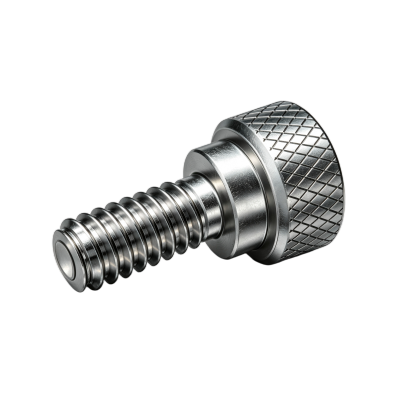

JBIDAAHED
Price $ 17.56
Part Number | JBIDAAHED |
System of Measurement | Inch |
Thread Size | 1/2"-13 |
Length | 2" |
Threading | Fully Threaded |
Head Diameter | 1 3/8" |
Head Height | 5/16" |
Collar Diameter | 7/8" |
Collar Height | 11/16" |
Screw Size Decimal Equivalent | 0.5" |
Material | 18-8 Stainless Steel |
Hardness | Rockwell B83 |
Tensile Strength | 80,000 psi |
Thread Type | UNC |
Thread Spacing | Coarse |
Thread Fit | Class 2A |
Thread Direction | Right Hand |
Head Texture | Knurled |
Head Type | Thumb |
Thumb Screw Head Shape | Round |
Round-Head Thumb Screw Profile | Raised |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (07/08/2021, 219 SVHC) Compliant |
Internal Code | 0014 |
INTERCHANGE
The LILY Bearing part series JBIDAAHED is a potential replacement for these common bearing part numbers.
