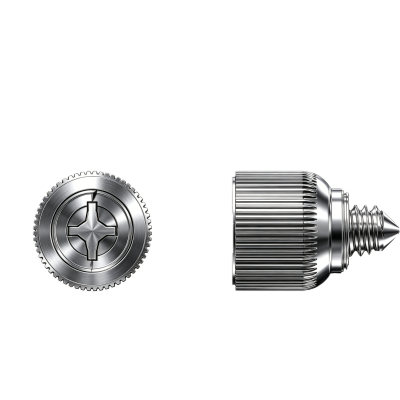

JCAGAADBA
Price $ 1.16
| Part Number | JCAGAADBA |
| System of Measurement | Inch |
| Thread Size | 4-40 |
| Head Diameter | 0.422" |
| Head Height | 0.328" |
| Length | 5/32" |
| Drive Size | No. 2 |
| Screw Size Decimal Equivalent | 0.112" |
| Drive Style | Phillips |
| For Inner Panel Min Thickness | 0.036" |
| For Inner Panel Hole Diameter | 0.219" |
| Body Material | Zinc-Plated Steel |
| Screw Material | 430 Stainless Steel |
| Head Material | Aluminum |
| Thread Type | UNC |
| Thread Spacing | Coarse |
| Thread Direction | Right Hand |
| Head Texture | Knurled |
| Head Type | Thumb |
| Thumb Screw Head Shape | Round |
| Captive Panel Screw Type | Threaded |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | Not Compliant |
| Internal Code | 0002 |
INTERCHANGE
The LILY Bearing part series JCAGAADBA is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JCAGAADBA
