JDGGJABDA
Per Pack Price $ 3.32
Per Pack of 5
| Part Number | JDGGJABDA |
| System of Measurement | Inch |
| Material | Zinc-Plated Steel |
| Thread Size | 10-32 |
| Thread Type | UNF |
| Thread Spacing | Fine |
| Thread Fit | Class 2B |
| Thread Direction | Right Hand |
| Drill Bit Size | 7/16" |
| Drill Bit Decimal Size Equivalent | 0.4375" |
| For Material Thickness | 0.020" to 0.100" |
| Body Type | Ribbed |
| Body Diameter | 0.43" |
| Length | 0.498" |
| Installed Length | 0.315" |
| Flange Diameter | 0.555" |
| Flange Thickness | 0.033" |

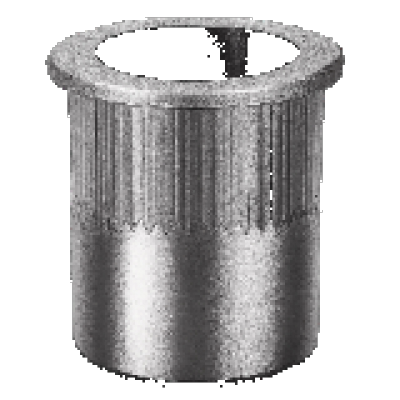

| Nut Type | Rivet |
| End Type | Open |
| For Use In | Metal |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
| Country of Origin | China |
INTERCHANGE
The LILY Bearing part series JDGGJABDA is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JDGGJABDA
