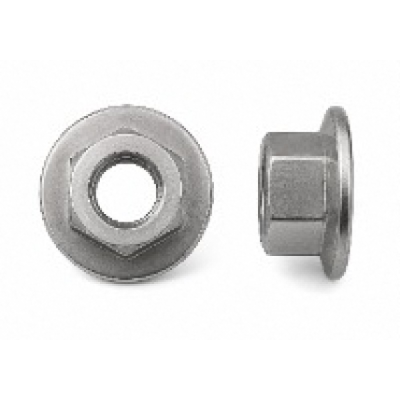

JEHFIABAE
![JEHFIABAE 18-8 Stainless Steel Flange Nuts](https://imgl.lily-bearing.com/nuts/flange-nuts/18-8-stainless-steel-flange-nuts/1704681468354.jpg?x-oss-process=image/resize,w_150,h_150,m_pad/auto-orient,1/quality,q_90/format,png)
Price $ 2.30
Part Number | JEHFIABAE |
System of Measurement | Inch |
Material | 18-8 Stainless Steel |
Thread Size | 10-24 |
Thread Type | UNC |
Thread Spacing | Coarse |
Thread Fit | Class 2B |
Thread Direction | Right Hand |
Width | 3/8" |
Height | 5/16" |
Flange Diameter | 1/2" |
Flange Thickness | 0.06" |
Drive Style | External Hex |
Nut Type | Flange, Hex |
Hex Nut Profile | Standard |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
Country of Origin | China |
![JEHFIABAE 18-8 Stainless Steel Flange Nuts cad drawing](https://image.lily-bearing.com/images/nuts/188stainlesssteelflangenuts.png)
INTERCHANGE
The LILY Bearing part series JEHFIABAE is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JEHFIABAE
