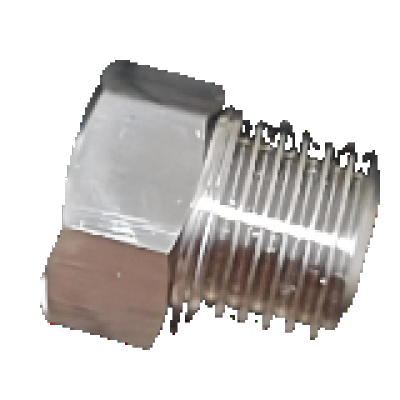

JEJBNBDC
Price $ 1.81
| Part Number | JEJBNBDC |
| System of Measurement | Metric |
| Shape | Straight |
| Type | Reducing Adapter, Bushing |
| Body Shape | Hex |
| Connection Type | Pipe |
| Connection Style | Threaded |
| Connection | BSPP Male × BSPP Female |
| Pipe Size (A) | 3/8 |
| Pipe Size (B) | 1/4 |
| Length | 14 mm |
| Hex Width | 19 mm |
| Maximum Pressure | 500 psi @ 72° F |
| Maximum Steam Pressure | 500 psi @ 212° F |
| Temperature Range | -20° to 212° F |
| Material | Nickel-Plated Brass |
| RoHS | RoHS 3 (2015/863/EU) compliant with exemption 6(b)-II - Lead as an alloying element in aluminum for machining purposes, RoHS 3 (2015/863/EU) compliant with exemption 6(c) - Lead in copper alloy, RoHS 3 (2015/863/EU) compliant with exemption 6(a)-I - Lead as an alloying element in steel |
| REACH | Not Compliant |
| For Use With | Air, Oil, Steam, Water |
INTERCHANGE
The LILY Bearing part series JEJBNBDC is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JEJBNBDC
