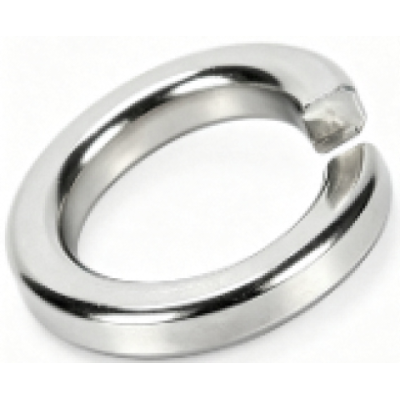

JHAJDABFD
Per Pack Price $ 6.90
Per Pack of 5
| Part Number | JHAJDABFD |
| System of Measurement | Metric |
| Material | 18-8 Stainless Steel |
| For Screw Size | M24 |
| ID | 24.5 mm |
| OD | 40.0 mm |
| Thickness | 3.8 mm |
| Overall Height | 6.5 mm |
| Washer Type | Split Lock |
| Split Lock Washer Type | Curved |
| Hardness | Not Rated |
| Specifications Met | DIN 128A |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
| DFARS | Specialty Metals COTS-Exempt |
| Country of Origin | China |
INTERCHANGE
The LILY Bearing part series JHAJDABFD is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JHAJDABFD
