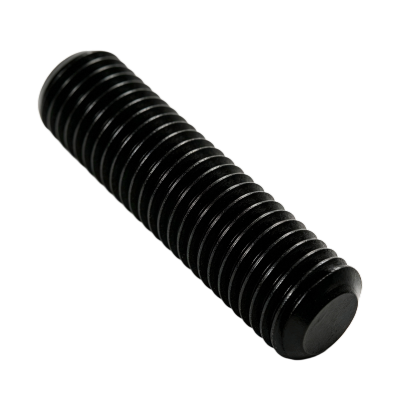

JHEJDABCC
Per Pack Price $ 4.04
Per Pack of 10
Part Number | JHEJDABCC |
System of Measurement | Metric |
Thread Size | M5 |
Thread Pitch | 0.8 mm |
Length | 18 mm |
Thread Length | 6 mm |
Shaft Diameter | 5 mm |
Shaft Length | 12 mm |
Shaft Dia Tolerance | -0.18 to 0 mm |
Base Diameter | 5 mm |
Drive Style | Slotted |
Thread Direction | Right Hand |
Threading | Threaded on One End |
Thread Type | Metric |
Thread Spacing | Coarse |
Thread Fit (External) | Class 6g |
Material | Steel |
Hardness | Rockwell B75 |
Tensile Strength | Not Rated |
Specifications Met | DIN 427, ISO 2342 |
RoHS | RoHS 3 (2015/863/EU) Compliant |
REACH | REACH (EC 1907/2006) (01/17/2022, 223 SVHC) Compliant |
Internal Code | 0062 |
INTERCHANGE
The LILY Bearing part series JHEJDABCC is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
JHEJDABCC
