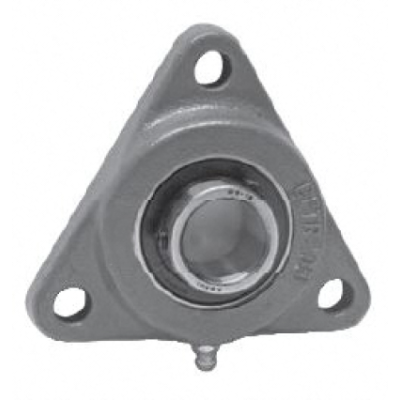

KHCFTR204
Price $ 15.00
| Part Number | KHCFTR204 |
Brand: LILY  |
Interchangeable With: AMI |
| System of Measurement | Metric |
| Bearing Part Number | KH204 |
| Housing Part Number | CFTR204 |
| Product Series | KHCFTR200 |
| Bearing Type | Ball Bearing |
| Mounted Type | Flange Bearing |
| Inner Ring Type | Narrow Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Eccentric Collar Locking |
| Lubrication Fitting Tap | 1/4 28 UNF |
| Bore Dia | 20 mm |
| Bore Dia Tolerance | -0.0005" to 0" |
| Mounting Bolt Size | M10 |
| Whole Length | 92 mm |
| Whole Width | 35 mm |
| Pillow Height | 11 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.24 lb |
| e | 77.5 mm |
| L | 31 mm |
| p | 89.5 mm |
| s | 11.5 mm |
| x | 20 mm |
| Z | 34 mm |
