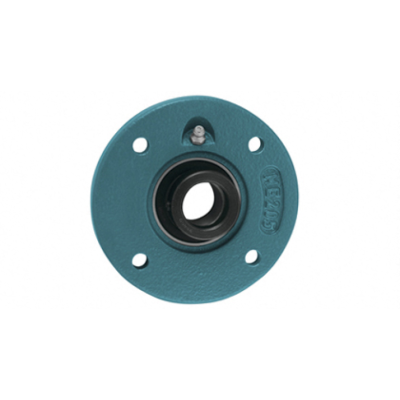

KHME209
| Part Number | KHME209 |
Brand: LILY  |
Interchangeable With: AMI |
| System of Measurement | Metric |
| Bearing Part Number | KH209 |
| Housing Part Number | ME209 |
| Product Series | KHME200 |
| Bearing Type | Ball Bearing |
| Mounted Type | Flange Bearing |
| Inner Ring Type | Narrow Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Eccentric Collar Locking |
| Lubrication Fitting Tap | 1/4 28 UNF |
| Bore Dia | 45 mm |
| Bore Dia Tolerance | -0.0005" to 0" |
| Mounting Bolt Size | M12 |
| Whole Length | 155 mm |
| Pillow Height | 12 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 4.60 lb |
| e | 91.9 mm |
| f | 105 mm |
| L | 43.7 mm |
| p | 130 mm |
| s | 14 mm |
| x | 25 mm |
| Z | 30.7 mm |
