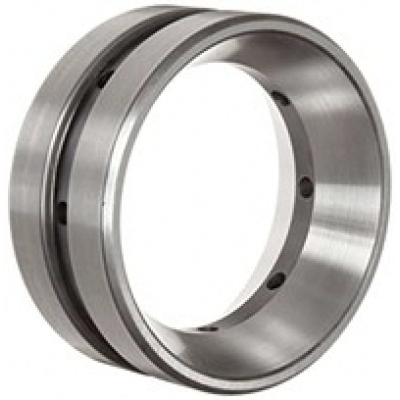

LM869410CD
Part Number | LM869410CD |
System of Measurement | Inch |
Roller Bearing Type | Tapered |
Type | Cups |
Cups Type | Standard |
Series | LM869400 |
Outer Dia | 22.5" |
Outer Dia Tolerance | +0.002" to 0 |
Double Cup Width | 4.375" |
Double Cup Width Tolerance | +0.002" to -0.01 |
Cup Backface ToClear Radius | 0.06" |
Cup Frontface Backing Diameter | 21.66" |
Ring Material | Chrome Steel |
Heat Generation Factor(Rib Roller End)(G2) | 491 |
Heat Generation Factor(Roller Raceway)(G1) | 3720 |
Temperature Range | -30° to 110 °C |
ABEC Rating | ABEC-1 |
RoHS | Compliant |
REACH | Compliant |
