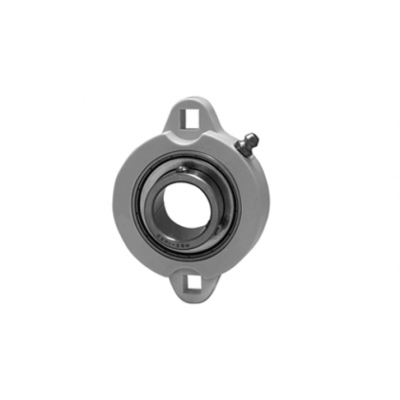

MBLX4-12B
| Part Number | MBLX4-12B |
Brand: LILY  |
Interchangeable With: AMI |
| System of Measurement | Inch |
| Bearing Part Number | MB4-12 |
| Housing Part Number | LX204 |
| Product Series | MBLX200 |
| Bearing Type | Ball Bearing |
| Mounted Type | Flange Bearing |
| Inner Ring Type | Narrow Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Set Screw Locking |
| Lubrication Fitting Tap | 1/4 28 UNF |
| Bore Dia | 3/4" |
| Bore Dia Tolerance | -0.0005" to 0" |
| Mounting Bolt Size | 5/16" |
| Whole Length | 3 35/64" |
| Whole Width | 0.972" |
| Pillow Height | 7/16" |
| Bearings Material | Stainless Steel |
| Housing Material | Plastic |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.38 lb |
| e | 2 13/16" |
| HousingColor | Black |
| L | 2 31/64" |
| s | 23/64" |
| x | 25/32" |
| Z | 1 9/64" |
