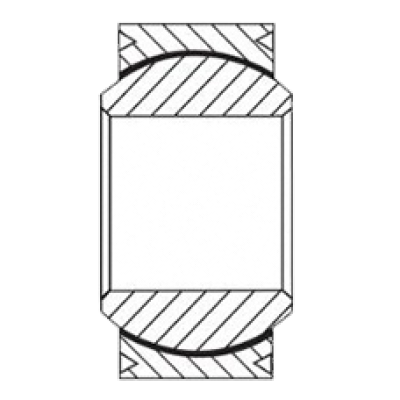

MKW8V
Price $ 186.90
| Part Number | MKW8V |
| Standard Reference | MS14103A-8 |
| System of Measurement | Inch |
| Bore Dia | 0.5" |
| Bore Dia Tolerance | -0.0005" to 0" |
| Outer Dia | 1" |
| Outer Dia Tolerance | -0.0005" to 0" |
| Ball Width | 0.625" |
| Ball Width Tolerance | -0.002" to 0" |
| Race Width | 0.505" |
| Race Width Tolerance | -0.005" to +0.005" |
| Shoulder Dia | 0.607" |
| Ball Dia | 0.875" |
| Pitch Dia | 0.9" |
| Mis Alignment | 9° |
| Groove Depth | 0.035" |
| Dynamic Radial Load | 14950 lbs |
| Static Radial Load | 21400 lbs |
| Weight | 0.1 lbs |
