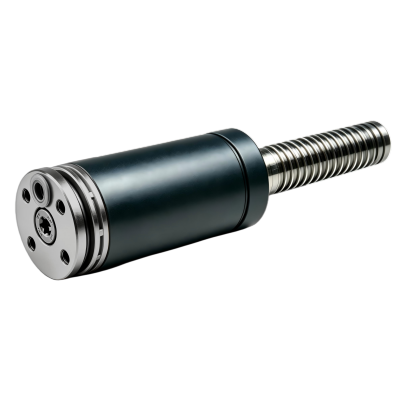

MT 16-70
| Part Number | MT 16-70 |
Brand: LILY  |
Interchangeable With: KALLER |
| System of Measurement | Inch |
| Minimum Length | 4.53" |
| Stroke Length | 2.76" |
| Total Length | 7.28" |
| End Force At Full Stroke | 160 lbf |
| Force Increase By Temperature Percent Per | 0.17 °F |
| Gas Volume | 0.000600349 cuf |
| Initial Force at max. pressure | 95 lbf |
| Max Charging Pressure | 2175 psi |
| Max Piston Rod Velocity | 196.85 ftmin |
| Max. Operating Temperature | 248 F |
| Min Charging Pressure | 362 psi |
| Min. Operating Temperature | 32 F |
| Recommended Max Strokes Per Minute | 20 |
| Weight | 0.55 lb |
INTERCHANGE
The LILY Bearing part series MT 16-70 is a potential replacement for these common bearing part numbers.
LILY
KALLER
LMT 16-70
MT 16-70
