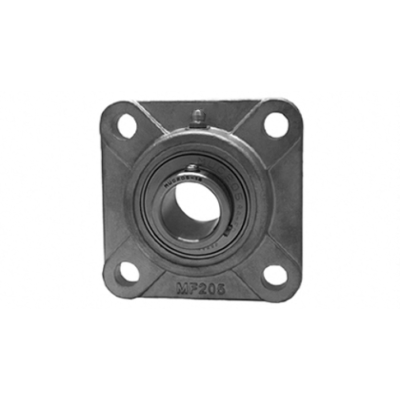

MUCF207
Price $ 59.27
Number
| Part Number | MUCF207 |
Brand: LILY  |
Interchangeable With: AMI |
| System of Measurement | Metric |
| Bearing Part Number | MUC207 |
| Housing Part Number | MF207 |
| Product Series | MUCF200 |
| Bearing Type | Ball Bearing |
| Mounted Type | Flange Bearing |
| Inner Ring Type | Wide Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Set Screw Locking |
| Lubrication Fitting Tap | 1/8 27 NPT |
| Bore Dia | 35 mm |
| Bore Dia Tolerance | -0.0005" to 0" |
| Mounting Bolt Size | M12 |
| Whole Length | 117 mm |
| Whole Width | 42.9 mm |
| Pillow Height | 16 mm |
| Bearings Material | Stainless Steel |
| Housing Material | Stainless Steel |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 3.44 lb |
| e | 92 mm |
| s | 13.5 mm |
| x | 34 mm |
| Z | 44.4 mm |
