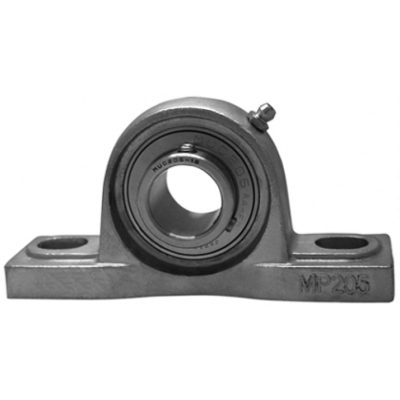

MUCP210-32
Price $ 81.77
Number
Part Number | MUCP210-32 |
Brand: LILY | Interchangeable With: AMI |
System of Measurement | Inch |
Bearing Part Number | MUC210-32 |
Housing Part Number | MP210 |
Product Series | MUCP200 |
Bearing Type | Ball Bearing |
Mounted Type | Pillow Block Bearing |
Inner Ring Type | Wide Inner Ring |
Bearing Seal Type | Double Sealed |
Shaft Mount Type | Set Screw Locking |
Lubrication Fitting Tap | 1/8 27 NPT |
Bore Dia | 2" |
Bore Dia Tolerance | -0.0005" to 0" |
Mounting Bolt Size | 5/8" |
Center Height | 2 1/4" |
Overall Height | 4 1/2" |
Whole Length | 8 1/8" |
Whole Width | 2 3/8" |
Hole Ctr-to-Ctr Min | 5 7/8" |
Hole Ctr-to-Ctr Max | 6 5/8" |
Pillow Height | 7/8" |
Hole Length | 1" |
Hole Width | 25/32" |
Bearings Material | Stainless Steel |
Housing Material | Stainless Steel |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
RoHS | Compliant |
REACH | Compliant |
Weight | 6.96 lb |
