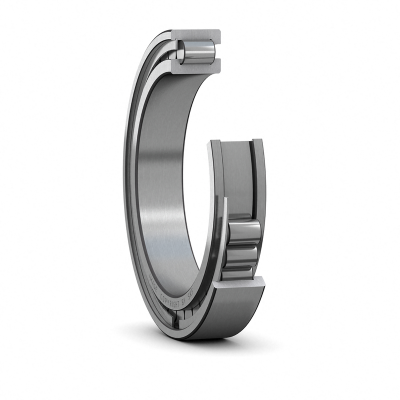

NCF 18/1000 V
| Part Number | NCF 18/1000 V |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined |
| Construction | Single Row Full Complement |
| Inner Ring Type | With Inner Ring |
| Seal Type | Open |
| Bore Dia | 1000 mm |
| Bore Dia Tolerance | -0.10mm to 0 |
| Outer Dia | 1220 mm |
| Outer Dia Tolerance | -0.125mm to 0 |
| Width | 100 mm |
| Width Tolerance | -1.00mm to 0 |
| Shoulder Dia Of Inner Ring | 1073 mm |
| Shoulder Dia Outer Ring | 1148 mm |
| Raceway Diameter Outer Ring | 1165 mm |
| Chamfer Dimension r1,2(min.) | 6 mm |
| Permissible Axial Displacement(max.) | 12 mm |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Full complement of rollers (no cage) |
| Dynamic Radial Load | 657000 lbf |
| Static Radial Load | 1687500 lbf |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 230 kg |
