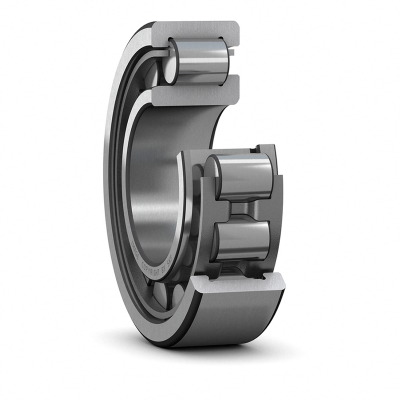

NJ 2219 ECJ
| Part Number | NJ 2219 ECJ |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined |
| Construction | Single Row |
| Inner Ring Type | With Inner Ring |
| Seal Type | Open |
| Bore Dia | 95 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 170 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Width | 43 mm |
| Width Tolerance | -0.20mm to 0 |
| Shoulder Dia Of Inner Ring | 120 mm |
| Shoulder Dia Of Outer Ring | 147.4 mm |
| Raceway Diameter Of Inner Ring | 112.5 mm |
| Chamfer Dimension r1,2(min.) | 2.1 mm |
| Chamfer Dimension r3,4(min.) | 2.1 mm |
| Permissible Axial Displacement(max.) | 3 mm |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Steel cage, roller centred |
| Dynamic Radial Load | 73125 lbf |
| Static Radial Load | 84375 lbf |
| Max Speed (X1000 rpm) | 5 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 3.91 kg |
