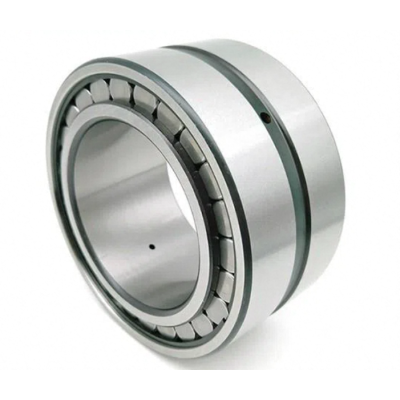

NNCF 5072 CV
| Part Number | NNCF 5072 CV |
Brand: LILY  |
Interchangeable With: SKF |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| For Load Direction | Combined |
| Bore Dia | 360 mm |
| Outer Dia | 540 mm |
| Width | 243 mm |
| Chamfer Dimension r3,4(min.) | 5 mm |
| Chamfer Dimension (Open Bearings)(r1,2)(min.) | 5 mm |
| Permissible Axial Displacement(max.) | 11 mm |
| Dynamic Radial Load | 940500 lbf |
| Static Radial Load | 1946250 lbf |
| Max Speed (X1000 rpm) | 1 |
| Lubrication | Grease, Oil |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
