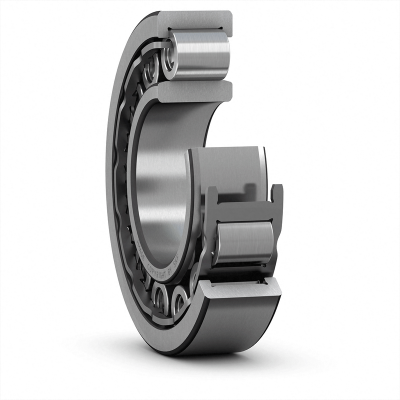

NU 19/600 ECMA/HA1
Part Number | NU 19/600 ECMA/HA1 |
Brand: LILY | Interchangeable With: SKF |
System of Measurement | Metric |
Roller Bearing Type | Cylindrical |
For Load Direction | Combined |
Construction | Single Row |
Inner Ring Type | With Inner Ring |
Seal Type | Open |
Bore Dia | 600 mm |
Bore Dia Tolerance | -0.05mm to 0 |
Outer Dia | 800 mm |
Outer Dia Tolerance | -0.075mm to 0 |
Width | 90 mm |
Width Tolerance | -0.50mm to 0 |
Shoulder Dia Of Outer Ring | 740 mm |
Raceway Diameter Of Inner Ring | 649 mm |
Chamfer Dimension r1,2(min.) | 5 mm |
Permissible Axial Displacement(max.) | 4.5 mm |
Ring Material | Chrome Steel |
Roller Material | Chrome Steel |
Cage Material | Brass cage, outer ring centred |
Dynamic Radial Load | 427500 lbf |
Static Radial Load | 855000 lbf |
Max Speed (X1000 rpm) | 1 |
Lubrication | Grease, Oil |
Temperature Range | -30° to 110 °C |
RoHS | Compliant |
REACH | Compliant |
Weight | 130 kg |
