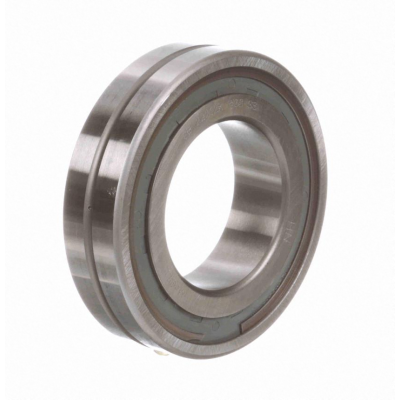

SB 22212K W33 SS
Price $ 198.06
Number
Part Number | SB 22212K W33 SS |
Brand: LILY | Interchangeable With: McGill |
System of Measurement | Metric |
Bearing Type | Roller |
Roller Bearing Type | Spherical |
Bore Type | Taper 1:12 |
For Load Direction | Combined |
Construction | Single Row |
Seal Type | Double Seal |
Bore Dia | 60 mm |
Outer Dia | 110 mm |
Width | 28 mm |
Shaft Shoulder Diameter | 69.8 mm |
Housing Shoulder Diameter | 106.4 mm |
Width Of Lubrication Groove | 4.4 mm |
Angular Misalignment | 2° |
Ring Material | Chrome Steel |
Roller Material | Chrome Steel |
Cage Material | Steel |
Dynamic Radial Load | 29405 lbf |
Max Speed (X1000 rpm) | 4.2 |
Lubrication | Lubrication Groove & Hole |
Temperature Range | -30° to 150 °C |
Radial Clearance | C0 |
Mounting Method | Shaft Mount |
RoHs | Compliant |
REACH | Compliant |
Weight | 2.60 lb |
