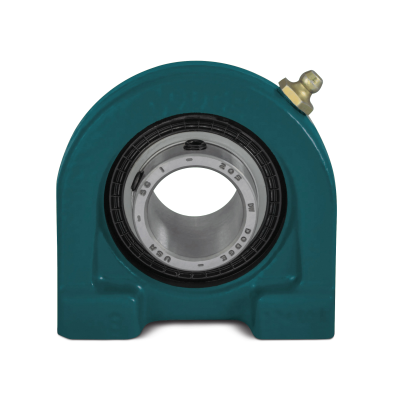

TB-SC-100-HT
| Part Number | TB-SC-100-HT |
| System of Measurement | Inch |
| Anti Rotation Pin | YES |
| Bearing Series | 205 SERIES |
| Shaft Attachment | SET SCREW |
| Retainer Type | MAX LIFE CAGE |
| Manufacturing Plant Location | Rogersville, TN |
| Expansion Type | NON-EXPANSION |
| Grease Type | HIGH TEMPERATURE |
| Bearing Duty | NORMAL DUTY |
| Ring Size | STANDARD |
| Seal Type | SHIELD |
| Base to Center Height | STANDARD |
| Bearing Family | SETSCREW BALL BEARING |
| Flinger Material | STEEL |
| Retainer Material | POLYMER |
| Ball Grade | CLASS 10 |
| UPC | 782475149520 |
| Bearing Inner Ring Material | STEEL |
| Ship Weight | 1.250 LB |
| CategoryNum | 355 |
| Ball Bearing Housing Series | 205 SERIES |
| Housing Coating | POWDER COAT |
| Shaft Size | 1.0000 IN |
| Housing Material | Cast iron |
| End Cap Groove | NO |
| Bearing Outer Ring Material | STEEL |
| Flinger Type | STANDARD FLINGER |
| Housing Type | TAPPED BASE PILLOW BLOCK |
| Ball Material | STEEL |
| Self Aligning | SELF CENTERING |
