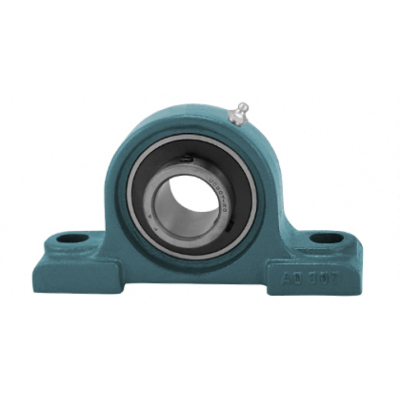

UCAO309-28
Price $ 37.71
Part Number | UCAO309-28 |
Brand: LILY | Interchangeable With: AMI |
System of Measurement | Inch |
Bearing Part Number | UC309-28 |
Housing Part Number | AO309 |
Product Series | UCAO300 |
Bearing Type | Ball Bearing |
Mounted Type | Pillow Block Bearing |
Inner Ring Type | Wide Inner Ring |
Bearing Seal Type | Double Sealed |
Shaft Mount Type | Set Screw Locking |
Lubrication Fitting Tap | 1/8 27 NPT |
Bore Dia | 1 3/4" |
Bore Dia Tolerance | -0.0005" to 0" |
Bearing Width | 2.244" |
Mounting Bolt Size | 5/8" |
Center Height | 2 5/8" |
Overall Height | 5 1/8" |
Whole Length | 9 7/16" |
Whole Width | 2 41/64" |
Hole Length | 1.024" |
Hole Width | 0.787" |
Hole Ctr-to-Ctr Min | 7.101" |
Hole Ctr-to-Ctr Max | 7.899" |
Pillow Height | 1 3/16" |
Bearings Material | AISI 52100 Steel |
Housing Material | Iron |
Lubrication | Required |
Temperature Range | -30° to 110 °C |
RoHS | Compliant |
REACH | Compliant |
Weight | 10.26 lb |
