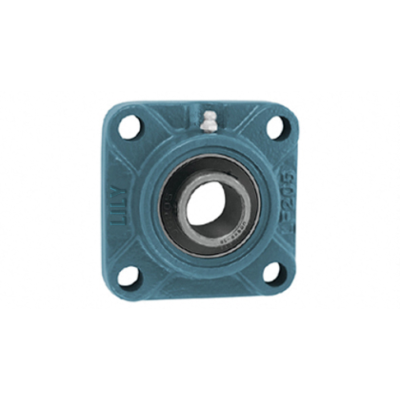

UCF218-56
Price $ 86.48
| Part Number | UCF218-56 |
Brand: LILY  |
Interchangeable With: AMI |
| System of Measurement | Inch |
| Bearing Part Number | UC218-56 |
| Housing Part Number | F218 |
| Product Series | UCLF200/UCF200 |
| Bearing Type | Ball Bearing |
| Mounted Type | Flange Bearing |
| Inner Ring Type | Wide Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Set Screw Locking |
| Lubrication Fitting Tap | 1/8 27 NPT |
| Bore Dia | 3 1/2" |
| Bore Dia Tolerance | -0.0005" to 0" |
| Bearing Width | 3.780" |
| Mounting Bolt Size | 7/8" |
| Whole Length | 9 1/4" |
| Pillow Height | 1 1/32" |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 24.91 lb |
| e | 7 3/8" |
| s | 29/32" |
| x | 2 11/16" |
| Z | 3.791" |
